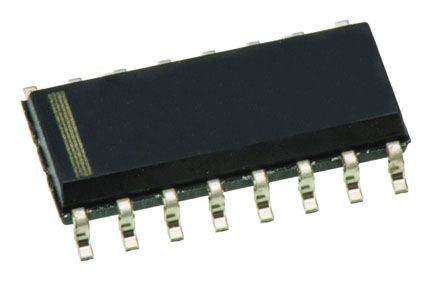

![Texas Instruments TLV5604ID 4626842](http://nguyenxuong.com/cdn/shop/products/W4626842-01_444x288.jpg?v=1594037967)
Texas Instruments TLV5604ID, 4-Channel 10 bit Serial DAC, 102ksps, 16-Pin SOIC [TLV5604ID]; 462-6842
0₫
Mã kho: 4626842
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 10 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Serial (SPI/QSPI/Microwire) |
Mounting Type | Surface Mount |
Package Type | SOIC |
Power Supply Type | Single |
Conversion Rate | 102ksps |
Typical Single Supply Voltage | 3 V, 5 V |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 16 |
Maximum Settling Time | 18µs |
Output Polarity | Unipolar |
Full Scale Error | ±0.6%FSR |
Length | 9.9mm |
Maximum Operating Temperature | +85 °C |
Dimensions | 9.9 x 3.91 x 1.58mm |
Height | 1.58mm |
Width | 3.91mm |
Integral Nonlinearity Error | ±1LSB |
Minimum Operating Temperature | -40 °C |
