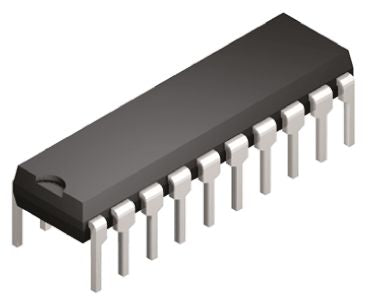

Texas Instruments TLC7528IN, 2-Channel 8 bit Parallel DAC, 10Msps, 20-Pin PDIP [TLC7528IN]; 662-1836
0₫
Mã kho: 6621836
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 10Msps |
| Typical Single Supply Voltage | 5 V, 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 0.1µs |
| Full Scale Error | 2.5LSB |
| Maximum Operating Temperature | +85 °C |
| Length | 24.33mm |
| Integral Nonlinearity Error | ±0.5LSB |
| Width | 6.35mm |
| Minimum Operating Temperature | -25 °C |
| Dimensions | 24.33 x 6.35 x 4.57mm |
| Height | 4.57mm |
