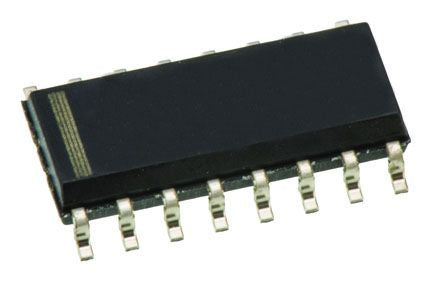

Texas Instruments TLC7524CDR, 8 bit Parallel DAC, 10Msps, 16-Pin SOIC [TLC7524CDR]; 662-1518
0₫
Mã kho: 6621518
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Conversion Rate | 10Msps |
| Typical Single Supply Voltage | 5 V, 15 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 0.1µs |
| Full Scale Error | ±2.5LSB |
| Dimensions | 9.9 x 3.91 x 1.58mm |
| Height | 1.58mm |
| Maximum Operating Temperature | +70 °C |
| Length | 9.9mm |
| Integral Nonlinearity Error | ±0.5LSB |
| Width | 3.91mm |
| Minimum Operating Temperature | 0 °C |
