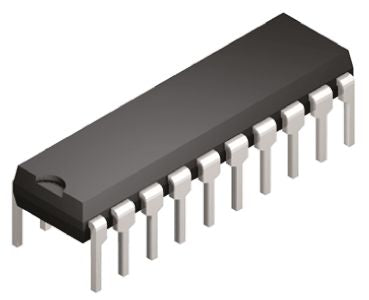

![Texas Instruments TLC7226CN 3467030](http://nguyenxuong.com/cdn/shop/products/PDIP-20_750a99ce-12e4-4e2f-b990-ad1b37f3afbf_369x300.jpg?v=1594230460)
Texas Instruments TLC7226CN, 4-Channel 8 bit Parallel DAC, 143ksps, 20-Pin PDIP [TLC7226CN]; 346-7030
0₫
Mã kho: 3467030
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Parallel |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Dual, Single |
Conversion Rate | 143ksps |
Typical Single Supply Voltage | 15 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 20 |
Maximum Settling Time | 20µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±2LSB |
Integral Nonlinearity Error | ±1LSB |
Width | 6.35mm |
Length | 24.33mm |
Maximum Operating Temperature | +70 °C |
Dimensions | 24.33 x 6.35 x 4.57mm |
Height | 4.57mm |
Minimum Operating Temperature | 0 °C |
Typical Dual Supply Voltage | -5 V, 12 V, 15 V |
