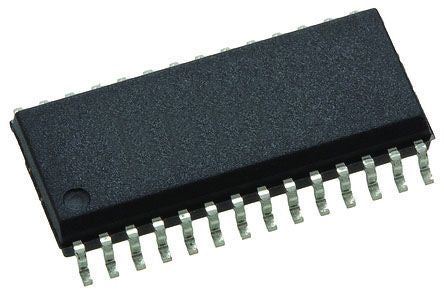

Texas Instruments DAC908U, 8 bit Parallel DAC, 200Msps, 28-Pin SOIC [DAC908U]; 162-4177
0₫
Mã kho: 1624177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Single |
| Conversion Rate | 200Msps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External, Internal |
| Architecture | Segmented |
| Pin Count | 28 |
| Maximum Settling Time | 0.03µs |
| Full Scale Error | 10%FSR |
| Length | 18mm |
| Width | 7.52mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Integral Nonlinearity Error | ±0.5LSB |
| Height | 2.35mm |
| Dimensions | 18 x 7.52 x 2.35mm |
