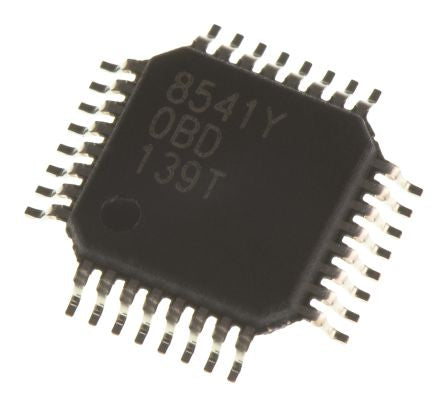

Texas Instruments DAC8541Y/250, 16 bit Parallel DAC, 100ksps, 32-Pin TQFP [DAC8541Y/250]; 662-1470
0₫
Mã kho: 6621470
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Power Supply Type | Single |
| Conversion Rate | 100ksps |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 32 |
| Maximum Settling Time | 10µs |
| Output Polarity | Unipolar |
| Full Scale Error | -0.8%FSR |
| Dimensions | 5 x 5 x 1mm |
| Length | 5mm |
| Integral Nonlinearity Error | ±0.098%FSR |
| Width | 5mm |
| Height | 1mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
