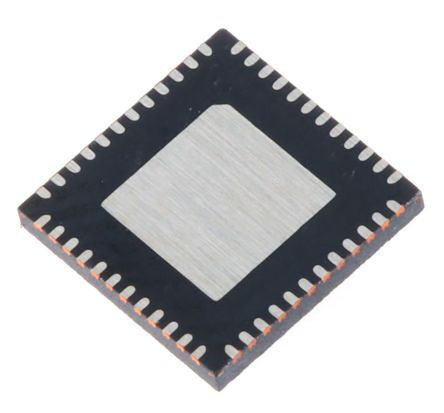

Texas Instruments DAC8218SRGZT, 8-Channel 14 bit Serial DAC, 48-Pin QFN [DAC8218SRGZT]; 709-4591
0₫
Mã kho: 7094591
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 8 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 30.5 V, 33.5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 48 |
| Maximum Settling Time | 15µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±4LSB |
| Height | 0.9mm |
| Dimensions | 7 x 7 x 0.9mm |
| Maximum Operating Temperature | +105 °C |
| Length | 7mm |
| Width | 7mm |
| Integral Nonlinearity Error | ±1LSB |
| Minimum Operating Temperature | -40 °C |
| Typical Dual Supply Voltage | ±15.5 V, ±17 V |
