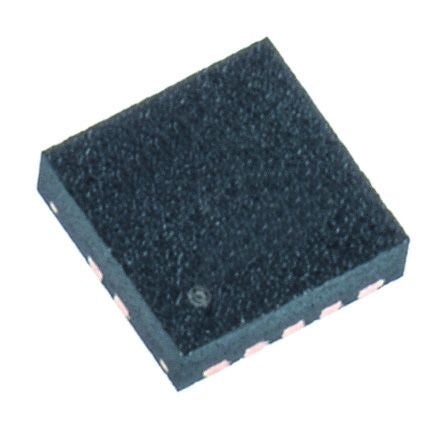

Texas Instruments DAC8162SDSCT, 2-Channel 14 bit Serial DAC, 10-Pin SON [DAC8162SDSCT]; 162-6140
0₫
Mã kho: 1626140
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SON |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | Internal |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 10µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.2%FSR |
| Length | 3.15mm |
| Maximum Operating Temperature | +125 °C |
| Integral Nonlinearity Error | 1LSB |
| Dimensions | 3.15 x 3.15 x 0.75mm |
| Width | 3.15mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.75mm |
