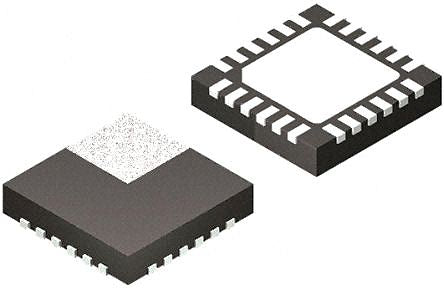

Texas Instruments DAC7678SRGET, 8-Channel 12 bit Serial DAC, 24-Pin VQFN [DAC7678SRGET]; 162-7660
0₫
Mã kho: 1627660
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 8 |
Digital Interface Type | Serial |
Mounting Type | Surface Mount |
Package Type | VQFN |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External, Internal |
Architecture | Resistor String |
Pin Count | 24 |
Maximum Settling Time | 12µs |
Output Polarity | Bipolar |
Full Scale Error | ±0.2%FSR |
Maximum Operating Temperature | +125 °C |
Height | 0.95mm |
Length | 4.15mm |
Dimensions | 4.15 x 4.15 x 0.95mm |
Minimum Operating Temperature | -40 °C |
Integral Nonlinearity Error | 1LSB |
Width | 4.15mm |
