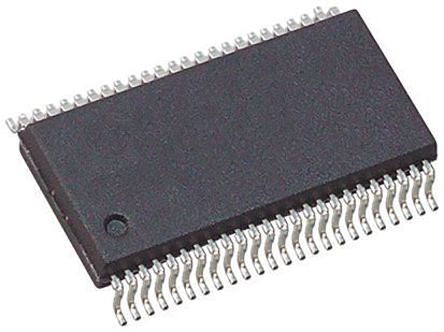

Texas Instruments DAC7634EB, 4-Channel 16 bit Serial DAC, 89ksps, 48-Pin SSOP [DAC7634EB]; 145-7124
0₫
Mã kho: 1457124
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Dual, Single |
| Conversion Rate | 89ksps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 48 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±2mV |
| Height | 2.59mm |
| Maximum Operating Temperature | +85 °C |
| Length | 15.88mm |
| Typical Dual Supply Voltage | ±5V |
| Dimensions | 15.88 x 7.49 x 2.59mm |
| Width | 7.49mm |
| Integral Nonlinearity Error | ±3LSB |
| Minimum Operating Temperature | -40 °C |
