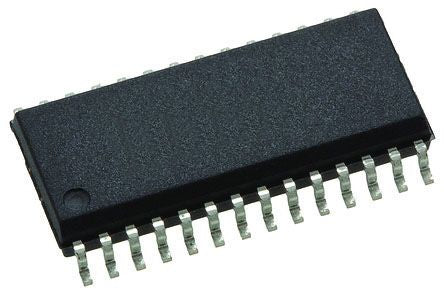

Texas Instruments DAC712UK, 16 bit Parallel DAC, 100ksps, 28-Pin SOIC [DAC712UK]; 660-5115
0₫
Mã kho: 6605115
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Conversion Rate | 100ksps |
| Voltage Reference | Internal |
| Architecture | R-2R, Resistor String |
| Pin Count | 28 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±0.15%FSR |
| Integral Nonlinearity Error | ±2LSB |
| Minimum Operating Temperature | 0 °C |
| Typical Dual Supply Voltage | ±15V |
| Length | 18mm |
| Maximum Operating Temperature | +70 °C |
| Height | 2.35mm |
| Width | 7.52mm |
| Dimensions | 18 x 7.52 x 2.35mm |
