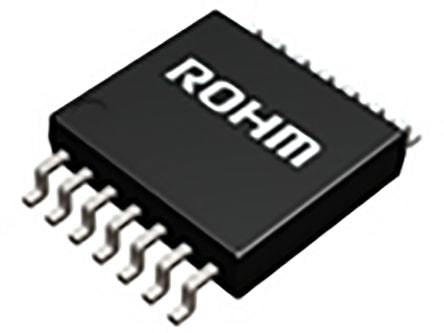

ROHM BU2508FV-E2, 4-Channel 10 bit DAC, 14-Pin SSOP [BU2508FV-E2]; 185-1362
by ROHM
0₫
Mã kho: 1851362
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 4 |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Pin Count | 14 |
| Maximum Settling Time | 20µs |
| Full Scale Error | ±25mV |
| Length | 5mm |
| Dimensions | 5 x 4.4 x 1.15mm |
| Height | 1.15mm |
| Maximum Operating Temperature | +85 °C |
| Width | 4.4mm |
| Minimum Operating Temperature | -30 °C |
| Integral Nonlinearity Error | ±3.5LSB |
