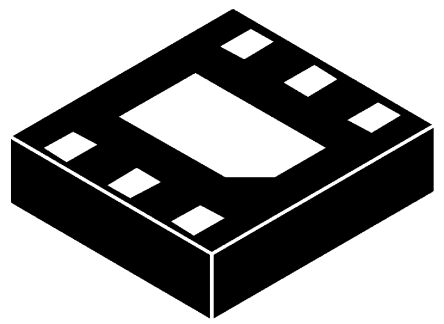

Microchip MCP4726A0T-E/MAY, 12 bit Serial DAC, 6-Pin DFN [MCP4726A0T-E/MAY]; 165-3395
by Microchip
0₫
Mã kho: 1653395
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (I2C) |
Mounting Type | Surface Mount |
Package Type | DFN |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 6 |
Maximum Settling Time | 6µs |
Output Polarity | Unipolar |
Full Scale Error | 82LSB |
Width | 2mm |
Integral Nonlinearity Error | 14.5LSB |
Dimensions | 2 x 2 x 0.85mm |
Height | 0.85mm |
Length | 2mm |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -40 °C |
