Data Converters > General Purpose DACs

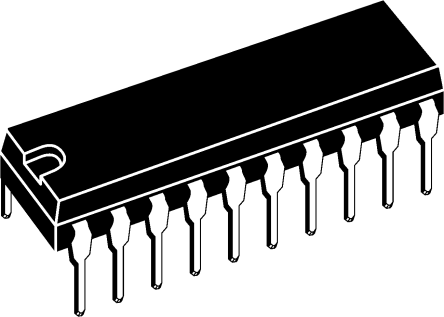

Maxim MX7226KN+, 4-Channel 8 bit Parallel DAC, 20-Pin PDIP [MX7226KN+]; 165-8950

0₫
(Giá chưa VAT).
Mã kho: 1658950

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Resolution 8 bit
Number of DAC Channels 4
Digital Interface Type Parallel
Mounting Type Through Hole
Package Type PDIP
Power Supply Type Dual, Single
Typical Single Supply Voltage 15 V
Voltage Reference External
Architecture R-2R, Resistor String
Pin Count 20
Maximum Settling Time 4µs
Output Polarity Unipolar
Full Scale Error ±1.5LSB
Width 7.87mm
Dimensions 26.54 x 7.87 x 4.45mm
Typical Dual Supply Voltage -5 V, 12 V, 15 V
Minimum Operating Temperature 0 °C
Integral Nonlinearity Error ±1LSB
Maximum Operating Temperature +70 °C
Length 26.54mm
Height 4.45mm
