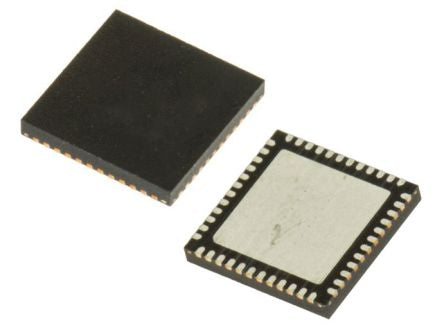

3.3V 16-Bit 200Msps Dynamic Perf DAC [MAX5885EGM+D]; 190-4655
0₫
Mã kho: 1904655
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | QFN-EP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V |
| Voltage Reference | External |
| Architecture | Current Steering |
| Pin Count | 48 |
| Maximum Settling Time | 11 (Typ.)ns |
| Output Polarity | Unipolar |
| Full Scale Error | -3.5 → +1.3%FSR |
| Minimum Operating Temperature | -40 °C |
| Integral Nonlinearity Error | ±0.006LSB |
| Dimensions | 7.1 x 7.1 x 0.85mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.85mm |
| Length | 7.1mm |
| Width | 7.1mm |
