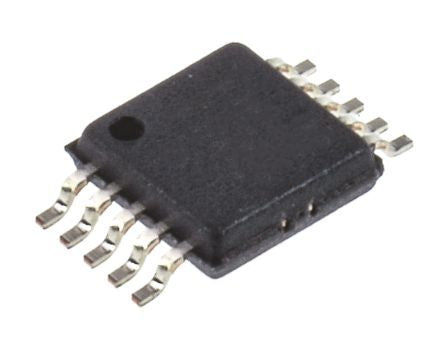

MAX5841LEUB+,D to A Converters - DAC [MAX5841LEUB+]; 191-4293
0₫
Mã kho: 1914293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (2 Wire, I2C) |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 12µs |
| Minimum Operating Temperature | -40 °C |
| Width | 3.05mm |
| Height | 0.95mm |
| Length | 3.05mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 3.05 x 3.05 x 0.95mm |
| Integral Nonlinearity Error | ±4LSB |
