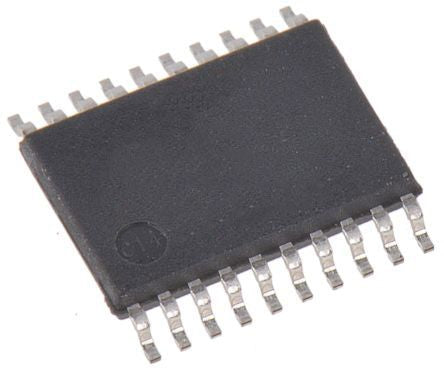

8Ch 12-/10-/8-Bit DACs Internal Ref I2C [MAX5825BAUP+]; 190-5577
0₫
Mã kho: 1905577
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 8 |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Voltage Reference | External, Internal |
Pin Count | 20 |
Maximum Settling Time | 4.5 (Typ.)µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±0.5%FSR |
Length | 6.6mm |
Maximum Operating Temperature | +125 °C |
Integral Nonlinearity Error | ±1LSB |
Height | 0.95mm |
Width | 4.5mm |
Dimensions | 6.6 x 4.5 x 0.95mm |
Minimum Operating Temperature | -40 °C |
