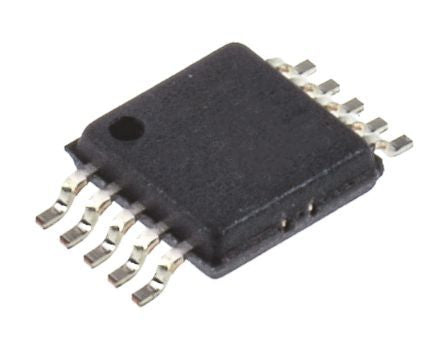

12-Bit Quad Voltage-Output DAC Serial [MAX5742AUB+]; 190-4647
0₫
Mã kho: 1904647
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | SPI Serial |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar, Unipolar |
| Maximum Operating Temperature | +125 °C |
| Integral Nonlinearity Error | ±16LSB |
| Dimensions | 3.05 x 3.05 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Width | 3.05mm |
| Height | 0.95mm |
| Length | 3.05mm |
