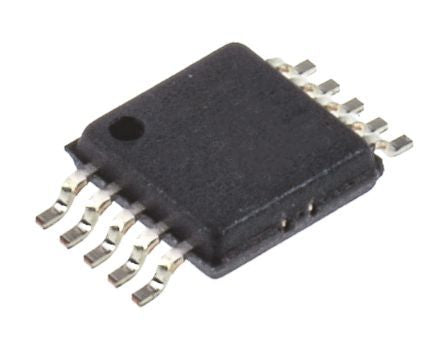

+3V/+5V Serial to Voltage 16-Bit DACs [MAX5442ACUB+]; 190-5441
0₫
Mã kho: 1905441
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 4 |
Digital Interface Type | Microwire, Serial (3 Wire), SPI/QSPI |
Mounting Type | Surface Mount |
Package Type | μMAX |
Power Supply Type | Single |
Typical Single Supply Voltage | 4.5 → 5.5 V |
Voltage Reference | External |
Architecture | R-2R |
Pin Count | 10 |
Maximum Settling Time | 1µs |
Output Polarity | Bipolar, Unipolar |
Minimum Operating Temperature | 0 °C |
Width | 3.12mm |
Height | 0.95mm |
Length | 3.16mm |
Integral Nonlinearity Error | ±2LSB |
Maximum Operating Temperature | +70 °C |
Dimensions | 3.16 x 3.12 x 0.95mm |
