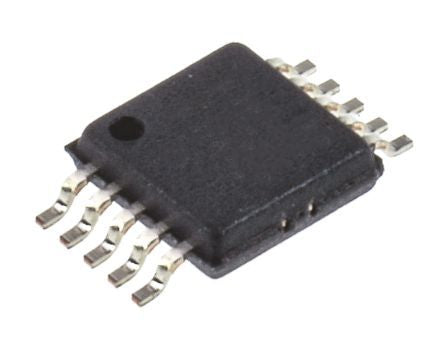

+3V/+5V Serial to Voltage 16-Bit DACs [MAX5442ACUB+]; 190-4641
0₫
Mã kho: 1904641
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Microwire, Serial (3 Wire), SPI/QSPI |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Voltage Reference | External |
| Architecture | R-2R |
| Pin Count | 10 |
| Maximum Settling Time | 1µs |
| Output Polarity | Bipolar, Unipolar |
| Integral Nonlinearity Error | ±2LSB |
| Length | 3.16mm |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 3.16 x 3.12 x 0.95mm |
| Height | 0.95mm |
| Width | 3.12mm |
| Maximum Operating Temperature | +70 °C |
