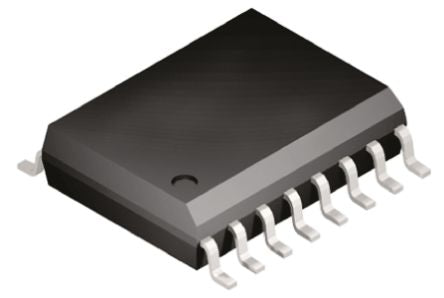

DAC 12-BIT, SERIAL DUAL [MAX532ACWE+]; 189-8986
0₫
Mã kho: 1898986
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Serial (SPI/QSPI) |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 2.5µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±4LSB |
| Height | 2.35mm |
| Dimensions | 10.5 x 7.6 x 2.35mm |
| Typical Dual Supply Voltage | ±15V |
| Width | 7.6mm |
| Minimum Operating Temperature | 0 °C |
| Length | 10.5mm |
| Integral Nonlinearity Error | ±0.5LSB |
| Maximum Operating Temperature | +70 °C |
