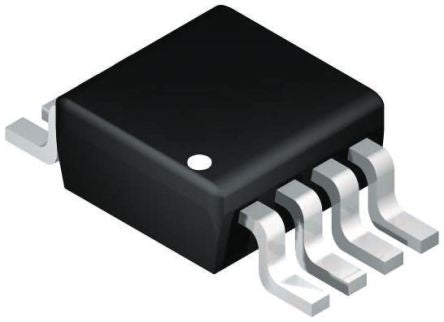

MAX5302CUA+, General Purpose DACs [MAX5302CUA+]; 192-2500
0₫
Mã kho: 1922500
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | μMAX |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 8 |
| Maximum Settling Time | 14µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±3LSB |
| Dimensions | 3.1 x 3.1 x 0.95mm |
| Width | 3.1mm |
| Height | 0.95mm |
| Maximum Operating Temperature | +70 °C |
| Length | 3.1mm |
| Integral Nonlinearity Error | ±4LSB |
| Minimum Operating Temperature | 0 °C |
