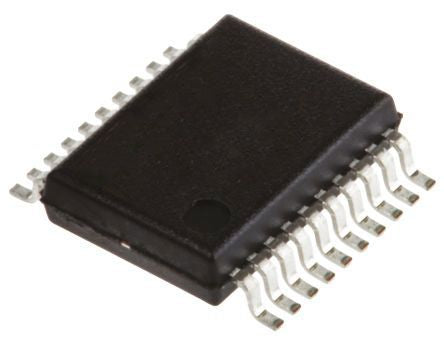

MAX5250BCAP+,D to A Converters - DAC [MAX5250BCAP+]; 191-3364
0₫
Mã kho: 1913364
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | SPI Serial |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 4.5 → 5.5 V |
| Voltage Reference | External |
| Architecture | R-2R |
| Pin Count | 20 |
| Maximum Settling Time | 10µs |
| Output Polarity | Bipolar, Unipolar |
| Length | 7.33mm |
| Maximum Operating Temperature | +70 °C |
| Integral Nonlinearity Error | ±1LSB |
| Dimensions | 7.33 x 5.38 x 1.78mm |
| Minimum Operating Temperature | 0 °C |
| Height | 1.78mm |
| Width | 5.38mm |
