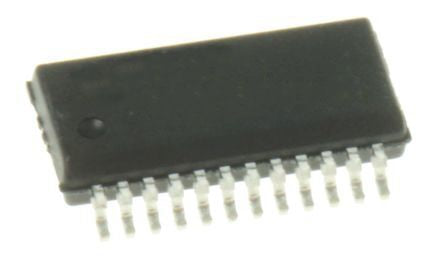

8-Bit 40MHz Current/Voltage-Output DACs [MAX5190BEEG+]; 190-5111
0₫
Mã kho: 1905111
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | QSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 3.3 V |
| Voltage Reference | External |
| Architecture | Current Resistor |
| Pin Count | 24 |
| Maximum Settling Time | 25ns |
| Full Scale Error | ±20LSB |
| Minimum Operating Temperature | -40 °C |
| Width | 3.99mm |
| Height | 1.65mm |
| Length | 8.74mm |
| Integral Nonlinearity Error | ±1LSB |
| Dimensions | 8.74 x 3.99 x 1.65mm |
| Maximum Operating Temperature | +85 °C |
