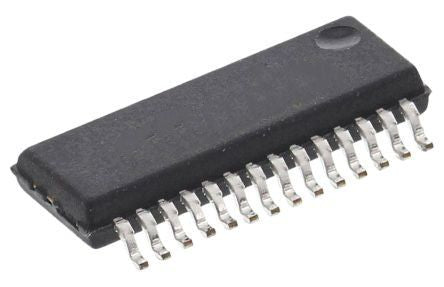

MAX5183BEEI+,D to A Converters - DAC [MAX5183BEEI+]; 191-3983
0₫
Mã kho: 1913983
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 10 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | QSOP |
Power Supply Type | Single |
Typical Single Supply Voltage | 2.7 → 3.3 V |
Voltage Reference | External |
Architecture | Resistor String |
Pin Count | 28 |
Maximum Settling Time | 25 (Typ.)ns |
Full Scale Error | ±40LSB |
Length | 9.98mm |
Integral Nonlinearity Error | ±2LSB |
Dimensions | 9.98 x 3.99 x 1.65mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Height | 1.65mm |
Width | 3.99mm |
