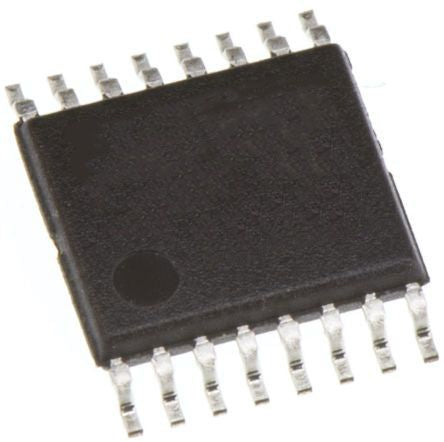

PinComp 16/12Bit Voltage-Output DACs [MAX5134AGUE+]; 190-4621
0₫
Mã kho: 1904621
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | SPI Serial |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.7 → 5.25 V |
| Voltage Reference | External, Internal |
| Architecture | Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 5µs |
| Output Polarity | Bipolar, Unipolar |
| Integral Nonlinearity Error | -8 → +10LSB |
| Height | 0.95mm |
| Width | 4.5mm |
| Dimensions | 5.1 x 4.5 x 0.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Length | 5.1mm |
