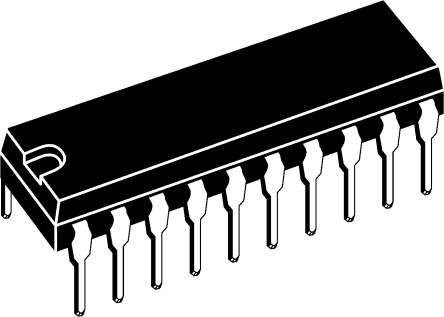

MAX506ACPP+, General Purpose DACs [MAX506ACPP+]; 192-2847
0₫
Mã kho: 1922847
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 20 |
| Maximum Settling Time | 6µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±14mV |
| Maximum Operating Temperature | +70 °C |
| Length | 26.54mm |
| Typical Dual Supply Voltage | ±5V |
| Width | 7.87mm |
| Height | 4.45mm |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 26.54 x 7.87 x 4.45mm |
