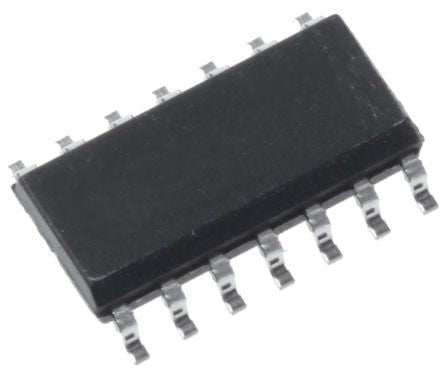

5V Voltage-Output Serial 10-Bit DACs [MAX504CSD+]; 190-5084
0₫
Mã kho: 1905084
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 10 bit |
Number of DAC Channels | 1 |
Digital Interface Type | SPI Serial |
Mounting Type | Surface Mount |
Package Type | SO |
Power Supply Type | Single |
Typical Single Supply Voltage | 5 V |
Voltage Reference | Internal |
Architecture | R-2R |
Pin Count | 14 |
Maximum Settling Time | 25µs |
Output Polarity | Bipolar, Unipolar |
Integral Nonlinearity Error | ±0.5LSB |
Minimum Operating Temperature | 0 °C |
Typical Dual Supply Voltage | ±5V |
Maximum Operating Temperature | +70 °C |
Width | 4mm |
Dimensions | 8.75 x 4 x 1.5mm |
Length | 8.75mm |
Height | 1.5mm |
