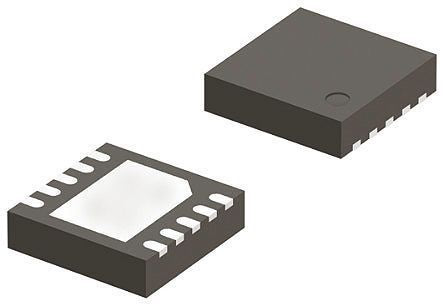

Linear Technology LTC2642CDD-16#PBF, 16 bit Serial DAC, 10-Pin DFN [LTC2642CDD-16#PBF]; 917-3494
0₫
Mã kho: 9173494
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3 V, 5 V |
| Voltage Reference | External |
| Pin Count | 10 |
| Maximum Settling Time | 1µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±5LSB |
| Dimensions | 3 x 3 x 0.75mm |
| Integral Nonlinearity Error | ±2LSB |
| Minimum Operating Temperature | 0 °C |
| Width | 3mm |
| Length | 3mm |
| Height | 0.75mm |
| Maximum Operating Temperature | +70 °C |
