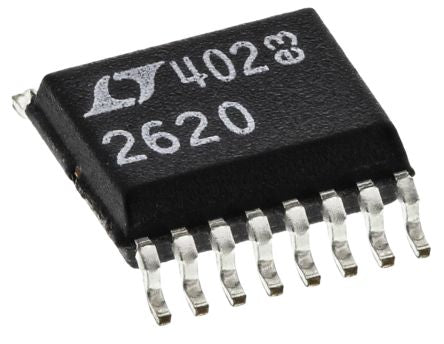

Linear Technology LTC2620CGN#PBF, 8-Channel 12 bit Serial DAC, 16-Pin SSOP [LTC2620CGN#PBF]; 506-1735
0₫
Mã kho: 5061735
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 12 bit |
| Number of DAC Channels | 8 |
| Digital Interface Type | Serial (SPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 3.3 V, 5 V |
| Voltage Reference | External |
| Pin Count | 16 |
| Maximum Settling Time | 7µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±0.7%FSR |
| Integral Nonlinearity Error | ±4LSB |
| Maximum Operating Temperature | +70 °C |
| Width | 3.99mm |
| Dimensions | 4.98 x 3.99 x 1.5mm |
| Length | 4.98mm |
| Height | 1.5mm |
| Minimum Operating Temperature | 0 °C |
