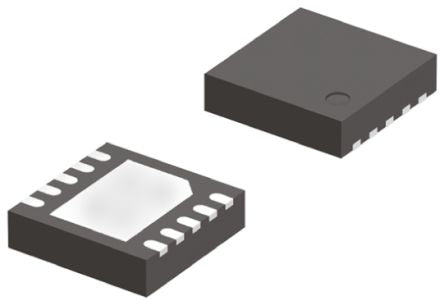

Linear Technology LTC2606CDD#PBF, 16 bit Serial DAC, 400kHz, 10-Pin DFN [LTC2606CDD#PBF]; 154-7630
0₫
Mã kho: 1547630
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Conversion Rate | 400kHz |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 10 |
| Maximum Settling Time | 10µs |
| Full Scale Error | ±1LSB |
| Integral Nonlinearity Error | ±64LSB |
| Length | 3mm |
| Dimensions | 3 x 3 x 0.75mm |
| Minimum Operating Temperature | 0 °C |
| Width | 3mm |
| Maximum Operating Temperature | +70 °C |
| Height | 0.75mm |
