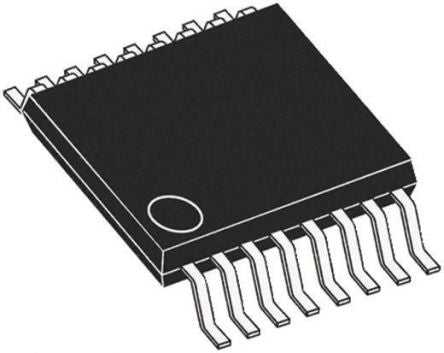

Quad 16-Bit Rail-Rail DAC SSOP16 [LTC2604IGN#PBF]; 155-7548
0₫
Mã kho: 1557548
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Voltage Reference | Internal |
| Architecture | R-2R |
| Pin Count | 16 |
| Maximum Settling Time | 10µs |
| Full Scale Error | 9mV |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 4.978 x 3.988 x 1.501mm |
| Integral Nonlinearity Error | ±64LSB |
| Maximum Operating Temperature | +85 °C |
| Height | 1.501mm |
| Length | 4.98mm |
| Width | 3.988mm |
