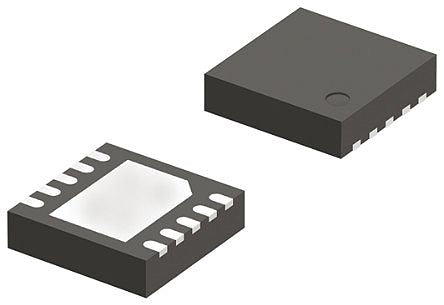

LTC2601,16-bit DAC,1Channel,R-R,DFN EP10 [LTC2601IDD#PBF]; 155-9303
0₫
Mã kho: 1559303
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Serial (SPI/Microwire) |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Single |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Architecture | R-2R |
| Pin Count | 10 |
| Maximum Settling Time | 10µs |
| Integral Nonlinearity Error | ±64LSB |
| Length | 3mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 3 x 3 x 0.75mm |
| Width | 3mm |
| Height | 0.75mm |
| Minimum Operating Temperature | -40 °C |
