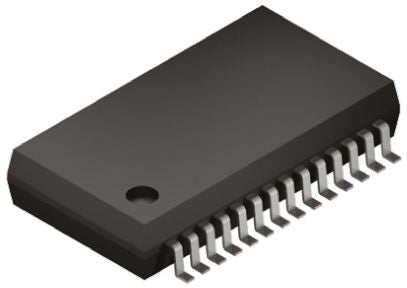

Linear Technology LTC1668IG#PBF, 16 bit Parallel DAC, 50Msps, 28-Pin SSOP [LTC1668IG#PBF]; 761-9153
0₫
Mã kho: 7619153
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 16 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | SSOP |
Power Supply Type | Dual |
Conversion Rate | 50Msps |
Voltage Reference | Internal |
Architecture | Current Steering |
Pin Count | 28 |
Maximum Settling Time | 0.02µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±4LSB |
Dimensions | 10.33 x 5.38 x 1.78mm |
Height | 1.78mm |
Typical Dual Supply Voltage | ±4.75 → ±5.25V |
Minimum Operating Temperature | 0 °C |
Length | 10.33mm |
Width | 5.38mm |
Maximum Operating Temperature | +70 °C |
Integral Nonlinearity Error | ±8LSB |
