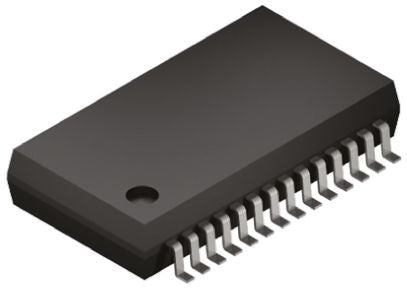

Linear Technology LTC1668CG#PBF, 16 bit Parallel DAC, 50Msps, 28-Pin SSOP [LTC1668CG#PBF]; 154-7613
0₫
Mã kho: 1547613
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 16 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Dual |
| Conversion Rate | 50Msps |
| Voltage Reference | Internal |
| Architecture | Current Steering |
| Pin Count | 28 |
| Maximum Settling Time | 0.02µs |
| Output Polarity | Bipolar, Unipolar |
| Full Scale Error | ±4LSB |
| Length | 10.33mm |
| Maximum Operating Temperature | +70 °C |
| Integral Nonlinearity Error | ±8LSB |
| Height | 1.78mm |
| Width | 5.38mm |
| Minimum Operating Temperature | 0 °C |
| Dimensions | 10.33 x 5.38 x 1.78mm |
| Typical Dual Supply Voltage | ±4.75 → ±5.25V |
