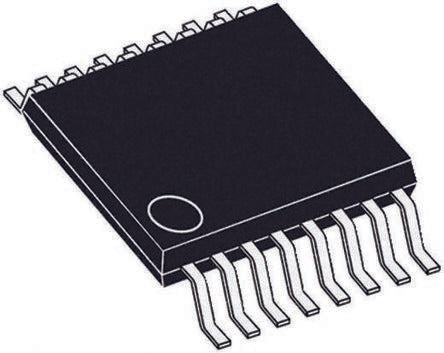

Linear Technology LTC1664CGN#PBF, 4-Channel 10 bit Serial DAC, 10MHz, 16-Pin SSOP [LTC1664CGN#PBF]; 145-7685
0₫
Mã kho: 1457685
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Serial (SPI) |
| Mounting Type | Surface Mount |
| Package Type | SSOP |
| Power Supply Type | Single |
| Conversion Rate | 10MHz |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 16 |
| Maximum Settling Time | 19µs |
| Output Polarity | Bipolar |
| Full Scale Error | ±15LSB |
| Maximum Operating Temperature | +70 °C |
| Integral Nonlinearity Error | ±2.5LSB |
| Length | 4.98mm |
| Dimensions | 4.978 x 3.988 x 1.501mm |
| Width | 3.988mm |
| Minimum Operating Temperature | 0 °C |
| Height | 1.501mm |
