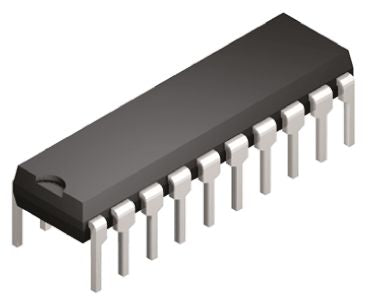

Analog Devices DAC8800FPZ, 8-Channel 8 bit Serial DAC, 1.25Msps, 20-Pin PDIP [DAC8800FPZ]; 157-8499
0₫
Mã kho: 1578499
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 8 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Through Hole |
Package Type | PDIP |
Power Supply Type | Dual, Single |
Conversion Rate | 1.25Msps |
Typical Single Supply Voltage | 12 V |
Voltage Reference | External |
Pin Count | 20 |
Maximum Settling Time | 2µs |
Output Polarity | Bipolar, Unipolar |
Full Scale Error | ±0.5LSB |
Minimum Operating Temperature | -40 °C |
Length | 26.16mm |
Dimensions | 26.16 x 6.35 x 3.3mm |
Height | 3.3mm |
Typical Dual Supply Voltage | -5 V, 12 V |
Width | 6.35mm |
Maximum Operating Temperature | +85 °C |
