Data Converters > General Purpose DACs

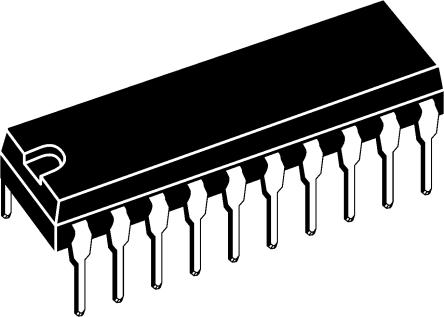

Analog Devices DAC8426FPZ, 4-Channel 8 bit Parallel DAC, 333ksps, 20-Pin PDIP [DAC8426FPZ]; 159-8028

0₫
(Giá chưa VAT).
Mã kho: 1598028

Mã nhà sản xuất: DAC8426FPZ

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Resolution 8 bit
Number of DAC Channels 4
Digital Interface Type Parallel
Mounting Type Through Hole
Package Type PDIP
Power Supply Type Dual, Single
Conversion Rate 333ksps
Typical Single Supply Voltage 15 V
Voltage Reference Internal
Architecture R-2R, Resistor String
Pin Count 20
Maximum Settling Time 3µs
Output Polarity Unipolar
Maximum Operating Temperature +85 °C
Height 4.95mm
Width 7.11mm
Integral Nonlinearity Error ±1LSB
Minimum Operating Temperature -40 °C
Length 26.9mm
Dimensions 26.9 x 7.11 x 4.95mm
Typical Dual Supply Voltage -5 V, 15 V
