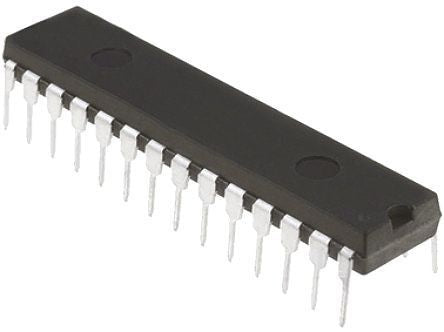

Analog Devices DAC8408GPZ, 4-Channel 8 bit Parallel DAC, 5.26Msps, 28-Pin PDIP [DAC8408GPZ]; 912-9551
0₫
Mã kho: 9129551
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 4 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Single |
| Conversion Rate | 5.26Msps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External |
| Architecture | R-2R, Resistor String |
| Pin Count | 28 |
| Maximum Settling Time | 0.25µs |
| Full Scale Error | ±1LSB |
| Width | 14.73mm |
| Length | 39.75mm |
| Dimensions | 39.75 x 14.73 x 4.95mm |
| Maximum Operating Temperature | +70 °C |
| Height | 4.95mm |
| Minimum Operating Temperature | 0 °C |
| Integral Nonlinearity Error | ±0.25LSB |
