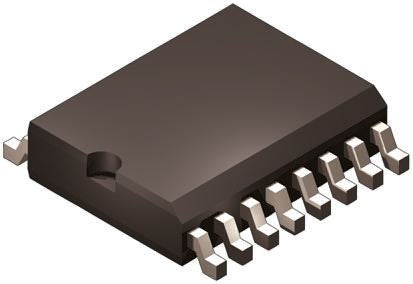

![Analog Devices DAC8143FSZ 1598024](http://nguyenxuong.com/cdn/shop/products/R0510819-01_14f5cfc4-7c88-487d-88b7-f82d7c96abf0_413x284.jpg?v=1594024463)
Analog Devices DAC8143FSZ, 12 bit Serial DAC, 2.63Msps, 16-Pin SOIC W [DAC8143FSZ]; 159-8024
0₫
Mã kho: 1598024
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | SOIC W |
Power Supply Type | Single |
Conversion Rate | 2.63Msps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | External |
Architecture | R-2R, Resistor String |
Pin Count | 16 |
Maximum Settling Time | 1µs |
Full Scale Error | ±2LSB |
Height | 2.35mm |
Maximum Operating Temperature | +85 °C |
Dimensions | 10.5 x 7.6 x 2.35mm |
Length | 10.5mm |
Integral Nonlinearity Error | ±1LSB |
Minimum Operating Temperature | -40 °C |
Width | 7.6mm |
