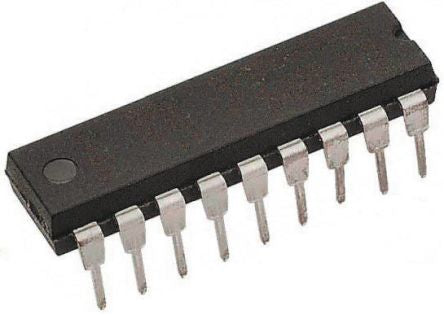

Analog Devices DAC10GPZ, 10 bit Parallel DAC, 18-Pin PDIP [DAC10GPZ]; 709-8442
0₫
Mã kho: 7098442
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual |
| Voltage Reference | External |
| Architecture | Current Steering |
| Pin Count | 18 |
| Maximum Settling Time | 0.15µs |
| Output Polarity | Unipolar |
| Dimensions | 22.86 x 6.35 x 3.3mm |
| Height | 3.3mm |
| Minimum Operating Temperature | 0 °C |
| Integral Nonlinearity Error | 1LSB |
| Width | 6.35mm |
| Length | 22.86mm |
| Maximum Operating Temperature | +70 °C |
| Typical Dual Supply Voltage | ±15V |
