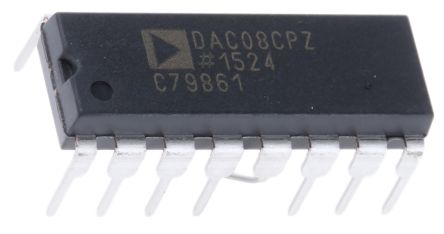

Analog Devices DAC08CPZ, 8 bit Parallel DAC, 11.8Msps, 16-Pin PDIP [DAC08CPZ]; 522-9004
0₫
Mã kho: 5229004
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 8 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual |
| Conversion Rate | 11.8Msps |
| Voltage Reference | External |
| Architecture | Current Steering |
| Pin Count | 16 |
| Maximum Settling Time | 0.15µs |
| Output Polarity | Unipolar |
| Full Scale Error | ±1LSB |
| Minimum Operating Temperature | -40 °C |
| Width | 6.35mm |
| Height | 3.3mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 20.07 x 6.35 x 3.3mm |
| Length | 20.07mm |
| Typical Dual Supply Voltage | ±15V |
| Integral Nonlinearity Error | ±0.39%FSR |
