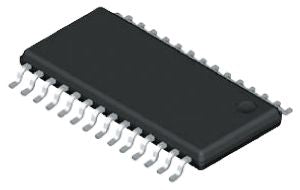

Analog Devices AD9754ARUZ, 14 bit Parallel DAC, 125Msps, 28-Pin TSSOP [AD9754ARUZ]; 157-8541
0₫
Mã kho: 1578541
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Power Supply Type | Single |
| Conversion Rate | 125Msps |
| Typical Single Supply Voltage | 5 V |
| Voltage Reference | External, Internal |
| Pin Count | 28 |
| Maximum Settling Time | 0.035µs |
| Full Scale Error | ±5%FSR |
| Dimensions | 9.7 x 4.4 x 1.05mm |
| Width | 4.4mm |
| Integral Nonlinearity Error | ±3LSB |
| Length | 9.7mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
