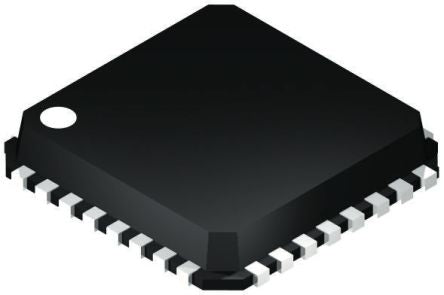

Analog Devices AD9740ACPZ, 10 bit Parallel DAC, 210Msps, 32-Pin LFCSP [AD9740ACPZ]; 158-1968
0₫
Mã kho: 1581968
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 10 bit |
| Number of DAC Channels | 1 |
| Digital Interface Type | Parallel |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Power Supply Type | Single |
| Conversion Rate | 210Msps |
| Typical Single Supply Voltage | 3.3 V |
| Voltage Reference | External, Internal |
| Architecture | Segmented |
| Pin Count | 32 |
| Maximum Settling Time | 0.011µs |
| Full Scale Error | ±2%FSR |
| Integral Nonlinearity Error | ±0.7LSB |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 5 x 5 x 0.83mm |
| Width | 5mm |
| Height | 0.83mm |
| Length | 5mm |
| Minimum Operating Temperature | -40 °C |
