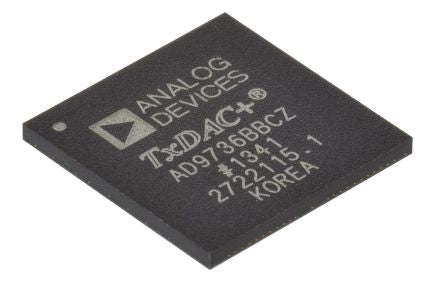

Analog Devices AD9736BBCZ, 14 bit Parallel DAC, 1.2Gsps, 160-Pin CSPBGA [AD9736BBCZ]; 108-280
0₫
Mã kho: 108280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 14 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | CSPBGA |
Power Supply Type | Single |
Conversion Rate | 1.2Gsps |
Typical Single Supply Voltage | 3.3 V |
Voltage Reference | Internal |
Pin Count | 160 |
Output Polarity | Unipolar |
Full Scale Error | ±1%FSR |
Integral Nonlinearity Error | ±5.6LSB |
Dimensions | 12 x 12 x 1mm |
Length | 12mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Width | 12mm |
Height | 1mm |
