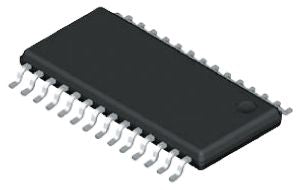

Analog Devices AD9708ARUZ, 8 bit Parallel DAC, 125Msps, 28-Pin TSSOP [AD9708ARUZ]; 145-6773
0₫
Mã kho: 1456773
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 8 bit |
Number of DAC Channels | 1 |
Digital Interface Type | Parallel |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Power Supply Type | Single |
Conversion Rate | 125Msps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | External, Internal |
Architecture | Segmented |
Pin Count | 28 |
Maximum Settling Time | 0.035µs |
Full Scale Error | ±10%FSR |
Length | 9.7mm |
Integral Nonlinearity Error | ±0.5LSB |
Maximum Operating Temperature | +85 °C |
Height | 1.05mm |
Width | 4.4mm |
Minimum Operating Temperature | -40 °C |
Dimensions | 9.7 x 4.4 x 1.05mm |
