![Analog Devices AD9706BCPZ 7591461](http://nguyenxuong.com/cdn/shop/products/R4969515-06_6a6eb042-fc45-483e-82eb-d6472a780ac8_444x295.jpg?v=1594248013)

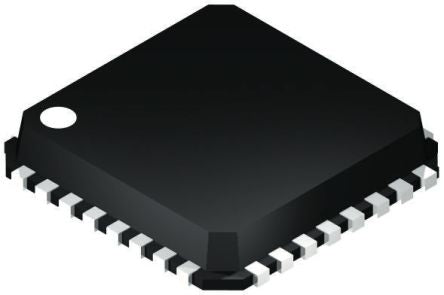

Analog Devices AD9706BCPZ, 12 bit Serial DAC, 175Msps, 32-Pin LFCSP VQ [AD9706BCPZ]; 759-1461
0₫
Mã kho: 7591461
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | LFCSP VQ |
Power Supply Type | Single |
Conversion Rate | 175Msps |
Typical Single Supply Voltage | 1.7 → 3.6 V |
Voltage Reference | Internal |
Architecture | R-2R, Resistor String |
Pin Count | 32 |
Maximum Settling Time | 0.011µs |
Maximum Operating Temperature | +85 °C |
Length | 5mm |
Dimensions | 5 x 5 x 1mm |
Minimum Operating Temperature | -40 °C |
Height | 1mm |
Integral Nonlinearity Error | ±0.3LSB |
Width | 5mm |
