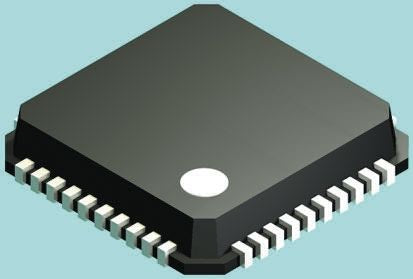

Analog Devices AD9117BCPZ, 2-Channel 14 bit Parallel/Serial DAC, 125Msps, 40-Pin LFCSP [AD9117BCPZ]; 806-8085
0₫
Mã kho: 8068085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resolution | 14 bit |
| Number of DAC Channels | 2 |
| Digital Interface Type | Parallel, Serial |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Power Supply Type | Single |
| Conversion Rate | 125Msps |
| Typical Single Supply Voltage | 1.8 → 3.3 V |
| Architecture | Segmented |
| Pin Count | 40 |
| Maximum Settling Time | 11.5ns |
| Full Scale Error | -2 → +2%FSR |
| Width | 5.85mm |
| Integral Nonlinearity Error | ±0.6 (Postcalibration) LSB, ±1.2 (Precalibration) LSB |
| Dimensions | 6.1 x 5.85 x 0.95mm |
| Length | 6.1mm |
| Maximum Operating Temperature | +85 °C |
| Height | 0.95mm |
| Minimum Operating Temperature | -40 °C |
