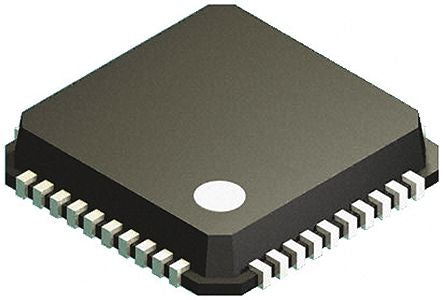

Analog Devices AD9116BCPZ, 2-Channel 12 bit Serial DAC, 125Msps, 40-Pin LFCSP VQ [AD9116BCPZ]; 160-4513
0₫
Mã kho: 1604513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | LFCSP VQ |
Power Supply Type | Single |
Conversion Rate | 125Msps |
Typical Single Supply Voltage | 1.7 → 3.5 V |
Architecture | Segmented |
Pin Count | 40 |
Maximum Settling Time | 11.5ns |
Minimum Operating Temperature | -40 °C |
Width | 6.1mm |
Height | 0.95mm |
Dimensions | 6.1 x 6.1 x 0.95mm |
Length | 6.1mm |
Maximum Operating Temperature | +85 °C |
