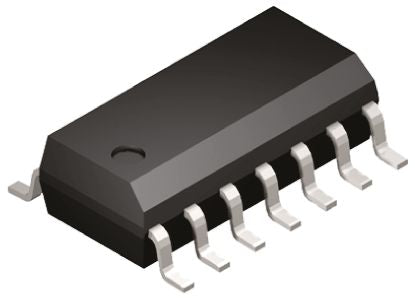

Analog Devices AD8522ARZ, 2-Channel 12 bit Serial DAC, 62.5ksps, 14-Pin SOIC [AD8522ARZ]; 158-0526
0₫
Mã kho: 1580526
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Resolution | 12 bit |
Number of DAC Channels | 2 |
Digital Interface Type | Serial (SPI) |
Mounting Type | Surface Mount |
Package Type | SOIC |
Power Supply Type | Single |
Conversion Rate | 62.5ksps |
Typical Single Supply Voltage | 5 V |
Voltage Reference | Internal |
Architecture | R-2R, Resistor String |
Pin Count | 14 |
Maximum Settling Time | 16µs |
Output Polarity | Unipolar |
Height | 1.5mm |
Length | 8.75mm |
Dimensions | 8.75 x 4 x 1.5mm |
Maximum Operating Temperature | +85 °C |
Width | 4mm |
Integral Nonlinearity Error | ±1.5LSB |
Minimum Operating Temperature | -40 °C |
